XGSPON SFP+

Plug-and-Play XGSPON SFP ONU Module

Key Features

● Supports symmetric 10G uplink and downlink speeds

● XGSPON ONU in SFP MSA structure

● 9.9532Gbps uplink / 9.9532Gbps downlink

● 0 to 40℃ operating ambient temperature

● Low Power Consumption

● Dual Interface Support

استعلام

ورقة البيانات

فئات المنتجات

This XGSPON SFP+ ONU module is a compact, hot-pluggable solution for upgrading Ethernet uplinks to 10G XGSPON. It integrates both PON and Ethernet MAC, requiring no external ONU and supporting single-fiber SC/APC connectivity.

Fully compliant with SFP MSA and ITU-T G.9807 standards, it supports 10GBASE-KR or 1000BASE-X on the host side, offers built-in diagnostics, and enables advanced features such as 1588v2 time sync, Dying Gasp reporting, and remote firmware upgrades—ideal for FTTx and enterprise applications. Hot-Pluggable XGSPON SFP+ ONU Module

Parameter	Description
Type	XGSPON SFP ONU
Uplink	XGSPON
Downlink	10GBASE-KR or 1000BASE-X (via golden finger)
Optical Connector	SC/APC, single fiber bi-directional
Transmitter	1270nm DFB, burst mode
Receiver	1577nm APD, continuous mode
Data Rate	9.9532Gbps upstream / 9.9532Gbps downstream
FEC	Supported (Upstream & Downstream)
Security	AES-128 encryption with key switching
Power Supply	Single 3.3V ±5%
Power Consumption	2.5W
Operating Temp	0°C ~ 40°C (Ambient), -40°C ~ 85°C (Case)
Operating Humidity	5% ~ 95%, non-condensing

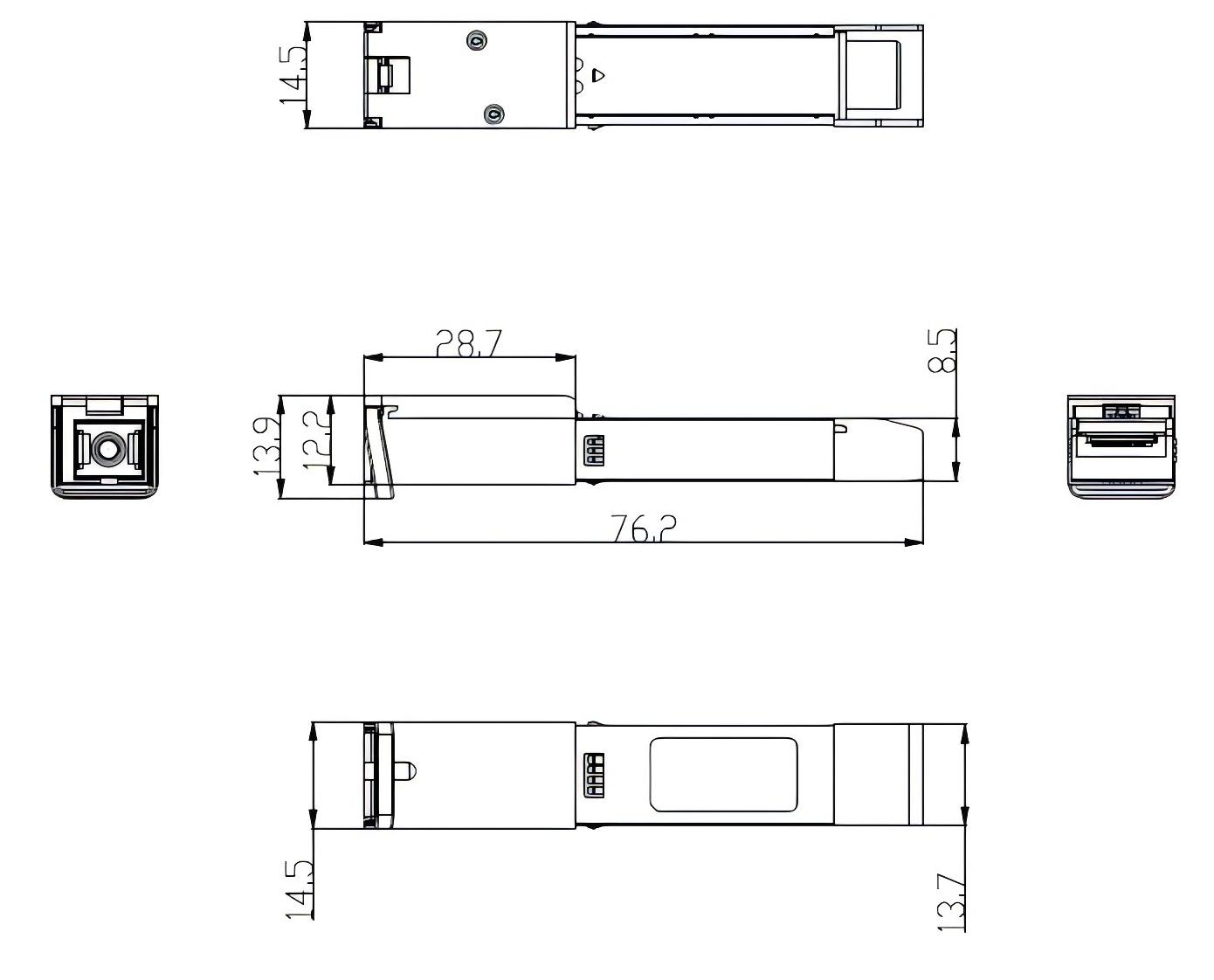

Dimension	76.2 × 13.7 × 12.2 mm
Installation	SFP+, hot pluggable
Compliance	ITU-T G.9807, SFF-8472, IEEE 802.3, RoHS 2.0
Management	OMCI, Web GUI, CLI
Upgrade Method	OMCI, Web, TFTP, FTP; supports image rollback
Time Sync	1PPS + TOD, 1588v2
Special Features	Dying Gasp input & OLT reporting

Fiber to the Home (FTTH)
Enterprise network uplink
Carrier equipment upgrade
Smart device integration
Customer premises equipment (CPE)
Providing pluggable PON ONU function for Ethernet Switch, Router, Home gateway & other customer premises equipment
